+# Repeater Web Panel
|
|
|
+
|
|
|
+This page is for end users running an EastMesh `*_repeater_mqtt` build with the local web panel enabled.
|
|
|
+
|
|
|
+It covers how to reach the panel, what each section does, and what to expect when using it on desktop or mobile.
|
|
|
+
|
|
|
+## What It Is
|
|
|
+
|
|
|
+The repeater web panel is a local HTTPS configuration page served directly by the repeater over WiFi.
|
|
|
+
|
|
|
+It gives you:
|
|
|
+
|
|
|
+- a password-gated local admin page
|
|
|
+- quick `get` commands for common repeater and MQTT checks
|
|
|
+- a terminal-style CLI panel for allowlisted commands
|
|
|
+- editable repeater settings
|
|
|
+- editable MQTT settings
|
|
|
+- a stats dashboard with Wi-Fi, core, radio, memory, and packet views
|
|
|
+
|
|
|

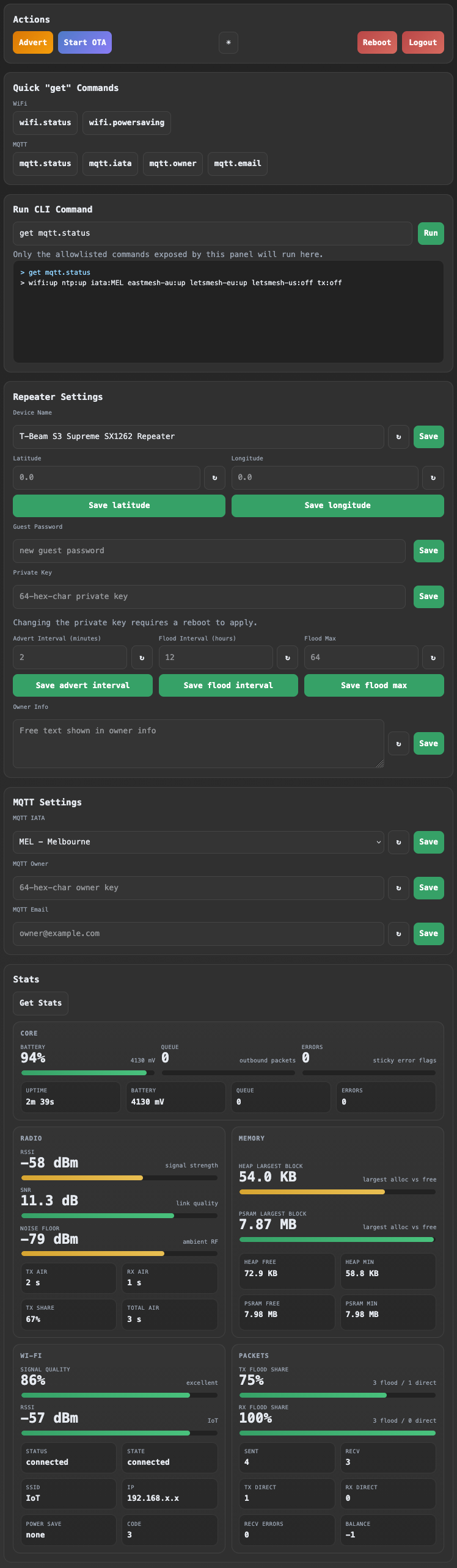

+## Screenshot Overview
|
|
|
+
|
|
|
+The layout below reflects the current panel structure for the repeater web UI.
|
|
|
+
|
|
|
+
|
|
|
+
|
|
|
+## Requirements
|
|
|
+
|
|
|
+You need:
|
|
|
+
|
|
|
+- a supported `*_repeater_mqtt` firmware build
|
|
|
+- WiFi configured on the repeater
|
|
|
+- the repeater connected to your local network
|
|
|
+- the repeater admin password
|
|
|
+
|
|
|
+Some constrained targets disable the web panel to stay within flash limits. If your board does not support it, `get web.status` will not show it as available.
|
|
|
+
|
|
|
+## How To Open It
|
|
|
+
|
|
|
+1. Connect the repeater to WiFi.
|
|
|
+2. Find its IP address.
|
|
|
+3. Open `https://<repeater-ip>/` in a browser.
|
|
|
+4. Accept the browser warning for the self-signed certificate.
|
|
|
+5. Enter the repeater admin password.
|
|
|
+
|
|
|
+Useful CLI commands:
|
|
|
+
|
|
|
+- `get wifi.status`
|
|
|
+ - shows WiFi state and IP address when connected
|
|
|
+- `get web.status`
|
|
|
+ - shows whether the web panel is up and which URL to use
|
|
|
+
|
|
|
+Example:
|
|
|
+
|
|
|
+- `https://10.33.135.208/`
|
|
|
+
|
|
|
+## Login And Security
|
|
|
+
|
|
|
+- the panel uses the same admin password as the repeater CLI
|
|
|
+- the connection is HTTPS, but the certificate is self-signed
|
|
|
+- browsers will warn the first time you connect
|
|
|
+- the panel only exposes an allowlisted subset of CLI commands
|
|
|
+
|
|
|
+This is intended for local admin use on a trusted network, not for open internet exposure.
|
|
|
+
|
|
|
+## Actions
|
|
|
+
|
|
|
+The Actions panel gives you the most common operational controls:
|
|
|
+
|
|
|
+- `Advert`
|
|
|
+- `Start OTA`
|
|
|
+- `Reboot`
|
|
|
+- `Logout`
|
|
|
+- theme toggle
|
|
|
+
|
|
|
+Use `Start OTA` only when you intend to update firmware.
|
|
|
+
|
|
|
+## Quick "get" Commands
|
|
|
+
|
|
|
+This section runs common read-only commands for:
|
|
|
+
|
|
|
+- Wi-Fi
|
|
|
+- MQTT
|
|
|
+
|
|
|
+These are useful for quick checks without typing into the CLI field.
|
|
|
+
|
|
|
+## Run CLI Command
|
|
|
+
|
|
|
+This is a small terminal for allowlisted commands.
|
|
|
+
|
|
|
+- press `Enter` to run the command
|
|
|
+- command history is shown in the terminal box below
|
|
|
+- save buttons elsewhere in the page also show the generated command and the reply here
|
|
|
+
|
|
|
+This makes it easy to see exactly what the panel sent to the repeater.
|
|
|
+
|
|
|
+## Repeater Settings
|
|
|
+
|
|
|
+This section includes:
|
|
|
+
|
|
|
+- Device Name
|
|
|
+- Latitude
|
|
|
+- Longitude
|
|
|
+- Guest Password
|
|
|
+- Private Key
|
|
|
+- Advert Interval
|
|
|
+- Flood Interval
|
|
|
+- Flood Max
|
|
|
+- Owner Info
|
|
|
+
|
|
|
+Notes:
|
|
|
+
|
|
|
+- `Latitude` and `Longitude` default to `0.0` as placeholders
|
|
|
+- changing the private key requires a reboot to apply
|
|
|
+- the refresh buttons load the current value from the repeater
|
|
|
+- the save buttons send the matching CLI command immediately
|
|
|
+
|
|
|
+## MQTT Settings
|
|
|
+
|
|
|
+This section includes:
|
|
|
+
|
|
|
+- `mqtt.iata`
|
|
|
+ - selected from a curated east-coast/south-east list
|
|
|
+- `mqtt.owner`
|
|
|
+ - owner public key
|
|
|
+- `mqtt.email`
|
|
|
+ - owner contact email
|
|
|
+
|
|
|
+`MEL` is used as the default dropdown option until the repeater's saved value is loaded.
|
|
|
+
|
|
|
+## Stats
|
|
|
+
|
|
|
+Press `Get Stats` to load the dashboard.
|
|
|
+
|
|
|
+The stats page currently shows:
|
|
|
+
|
|
|
+- Core
|
|
|
+- Radio
|
|
|
+- Memory
|
|
|
+- Wi-Fi
|
|
|
+- Packets
|
|
|
+
|
|
|
+The dashboard is designed to work well on phones as well as desktop browsers.
|
|
|
+
|
|
|
+## Mobile Use
|
|
|
+
|
|
|
+The page is responsive and should work cleanly on a phone.
|
|
|
+
|
|
|
+On mobile:
|
|
|
+
|
|
|
+- quick command buttons collapse into a two-column layout
|
|
|
+- action buttons stack more cleanly
|
|
|
+- input rows stay usable for touch interaction
|
|
|
+- stats cards reorganize into single-column sections where needed
|
|
|
+
|
|
|
+## Common Tasks
|
|
|
+
|
|
|
+### Check WiFi And MQTT
|
|
|
+
|
|
|
+1. Open the panel.
|
|
|
+2. Press `wifi.status` in Quick `get` Commands.
|
|
|
+3. Press `mqtt.status` in Quick `get` Commands.
|
|
|
+4. Press `Get Stats` for the dashboard view.
|
|
|
+
|
|
|
+### Change Device Name
|
|
|
+
|
|
|
+1. Edit `Device Name`.
|
|
|
+2. Press `Save`.
|
|
|
+3. Confirm the generated command and reply in the CLI terminal box.
|
|
|
+
|
|
|
+### Update MQTT Owner Or Email
|
|
|
+
|
|
|
+1. Go to `MQTT Settings`.
|
|
|
+2. Enter the new value.
|
|
|
+3. Press `Save`.
|
|
|
+4. Use the refresh button if you want to re-read the stored value from the repeater.
|
|
|
+
|
|
|
+### Start OTA
|
|
|
+
|
|
|
+1. Press `Start OTA`.
|
|
|
+2. Confirm the action.
|
|
|
+3. Continue with your normal OTA workflow.
|
|
|
+
|
|
|
+## Troubleshooting
|
|
|
+
|
|
|
+### The browser warns about the certificate
|
|
|
+
|
|
|
+That is expected. The panel uses a self-signed certificate generated for local use.
|
|
|
+
|
|
|
+### I cannot reach the page
|
|
|
+
|
|
|
+Check:
|
|
|
+
|
|
|
+- the repeater is on WiFi
|
|
|
+- the IP address from `get wifi.status`
|
|
|
+- `get web.status` reports the panel as up
|
|
|
+- your board/firmware target supports the web panel
|
|
|
+
|
|
|
+### The panel opens but login fails
|
|
|
+
|
|
|
+Use the repeater admin password, not the guest password.
|
|
|
+
|
|
|
+### A command says it is not allowlisted
|
|
|
+
|
|
|
+The panel intentionally limits what can be run from the browser. Use the serial CLI for commands outside the web allowlist.
|
|
|
+
|
|
|
+### Stats or settings do not refresh
|
|
|
+
|
|
|
+Try:
|
|
|
+
|
|
|
+- refreshing the browser tab
|
|
|
+- logging out and back in
|
|
|
+- checking WiFi stability with `get wifi.status`
|
|
|
+
|
|
|
